SGF 1100 Automatic Water-based Film Laminator

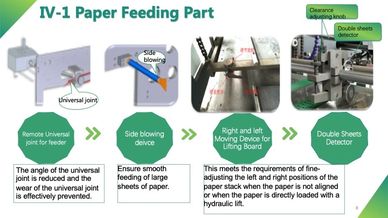

The feeder supports high-speed operation with sub-piling or pre-piling capability. This allows paper pile changes without stopping the machine, significantly increasing productivity.
Key Features:

• Conjugate cam high-speed feeder (up to 15,000 sheets/hour)
• Centrifugal fan and perforated belt for stable sheet transport
• Direct-push hydraulic loading system for efficiency

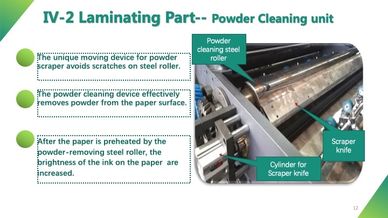

This section ensures excellent film bonding using a ceramic anilox roller and precision glue metering system. The oil-heated roller and hot air recycling system enhance glue drying speed.
Key Features:

• Ceramic gluing roller with doctor blade
• Powder removal roller increases ink brightness
• Hot air circulation with constant temperature control

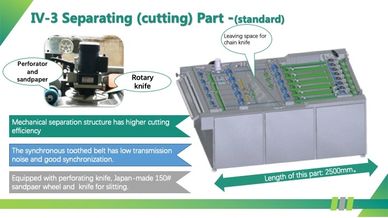

Equipped with rotary and perforating knives, this section ensures clean separation without curling or overlapping. Optional ultrasonic detection and servo cutting improve performance.
Key Features:

• Rotary knife, perforating knife, and sandpaper wheel
• Anti-bending design
• Optional chain knife for PET films


Designed for stable, non-stop sheet delivery, this section prevents bending and ensures neat stacking. It includes an automatic sheeting platform with sheet counting.
Key Features:

• Pressure wheel for smooth slowdown
• Non-stop delivery platform
• Side and front flapping system

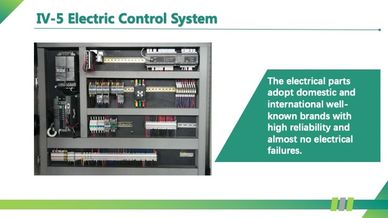

The electrical system features well-known domestic and international brands. The intuitive touchscreen interface simplifies operation and monitoring.
Key Features:

• Touchscreen panel
• High-reliability PLC and servo system
• Minimal downtime and error detection
